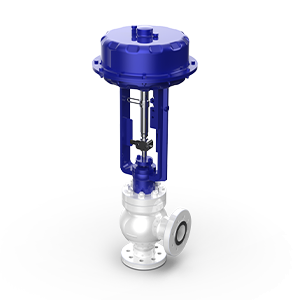

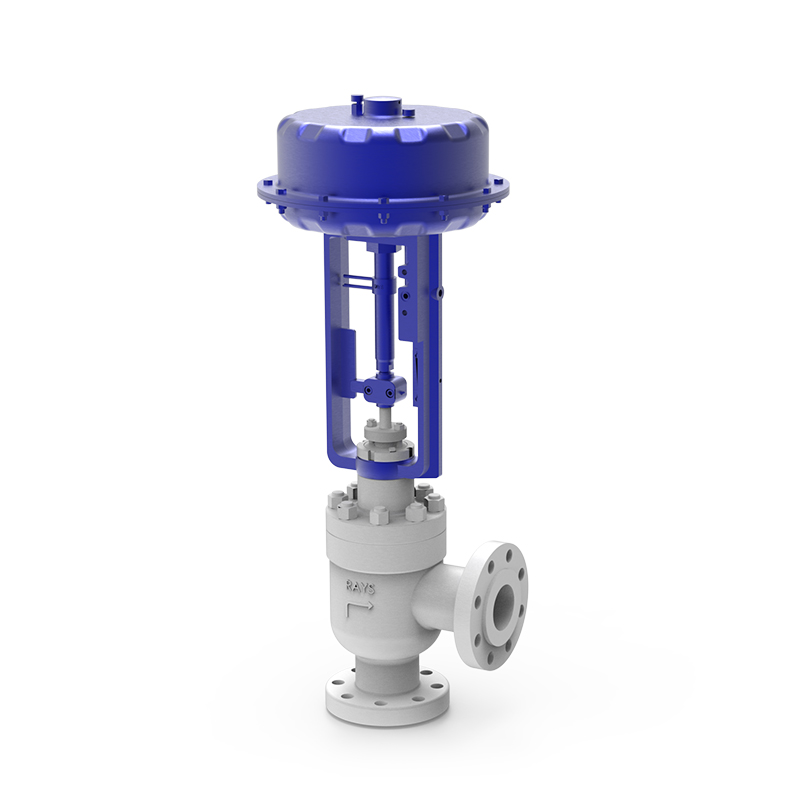

CAV701-V Venturi Angle Valve
The CAV701-V Venturi angle valve is a control valve with a top-guided structure. The flow path of the valve body is smooth, with low pressure drop loss, large flow capacity, large guiding area for the valve core, and good shock resistance. It is widely used for controlling fluids containing particles and mud, viscous or vaporizing fluids.

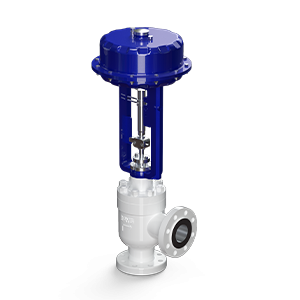

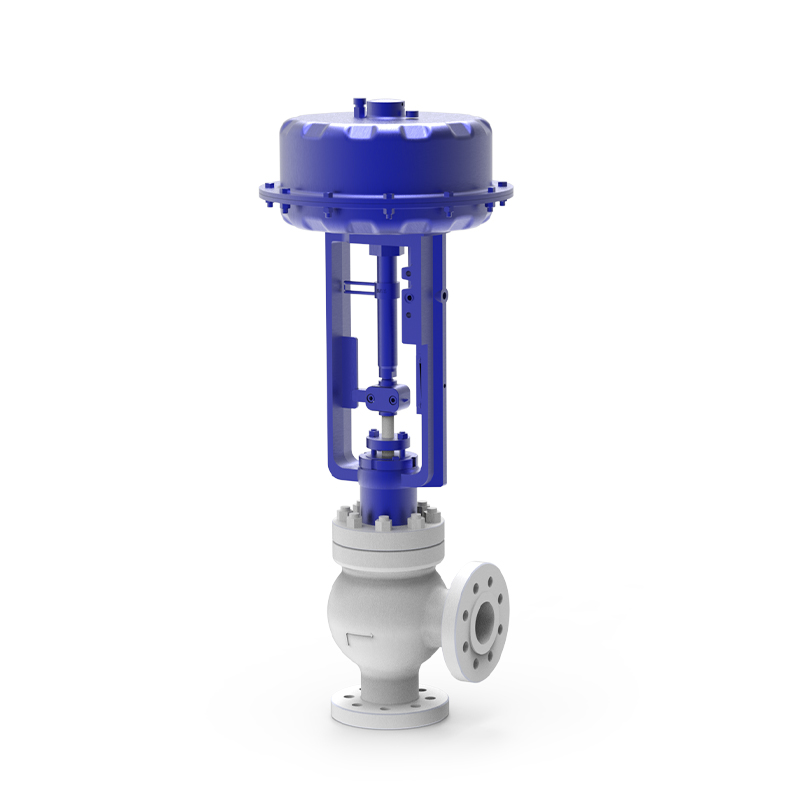

CAV701 Angle-type Single-seat Control Valve
The CAV701 Angle-type Single-seat Control Valve is a single-directional structure control valve, which is particularly suitable for regulating high-viscosity, suspended matter-containing and particulate fluid. It can avoid coking, adhesion, blockage and other phenomena, facilitating self-cleaning and cleaning. The valve body has a compact structure, low pressure drop loss, large flow rate, wide adjustable range, unobstructed flow path, low resistance, high accuracy of flow curve, etc.
CAV702 Angle-type Cage-guided Control Valve
The CAV702 Angle-type Cage-guided Control Valve is a pressure-balancing type regulating valve. Its valve body is compact and features a guide wing that improves the smooth flow of fluid around the sleeve. The advantages include low pressure drop loss, large flow rate, wide adjustable range, high accuracy of flow characteristic curve, and it can be selected according to the requirements of pipeline layout. This valve has good dynamic stability, low noise, and low cavitation corrosion. It is suitable for controlling high-pressure difference fluids.
CAVL702 Angle-type Low-leakage Cage-guided Control Valve
The CAVL702 Angle-type Low-leakage Cage-guided Control Valve is a pressure-balancing type control valve. Its valve body is compact and features a guide wing that improves the smooth flow of fluid around the sleeve. It is suitable for pipe layout with turns and for regulating high-viscosity fluids containing suspended matter and particulate solids. It has the advantages of low pressure drop loss, large flow rate, wide adjustable range, and high accuracy of flow characteristic curve.
CAVH701 High-pressure Single-seat Angle-type Control Valve
The CAVH701 High-pressure Single-seat Angle-type Control Valve is a valve with a top-guided structure. It can be selected as an angle valve according to the requirements of pipeline orientation layout. The valve body has low pressure drop loss, large flow capacity, and wide adjustable range. The valve core has a large guiding area and good vibration resistance performance, and can be widely used to control various high-pressure fluids at different temperatures.
CAVH702 High-pressure Cage-guided Angle-type Control Valve
The CAVH702 High-pressure Cage-guided Angle-type Control Valve is a pressure-balancing type control valve. It can be selected as an angle valve according to the requirements of pipeline layout. The control is widely applicable to high-pressure drop scenarios that demand good dynamic stability, low noise, and minimal cavitation corrosion.

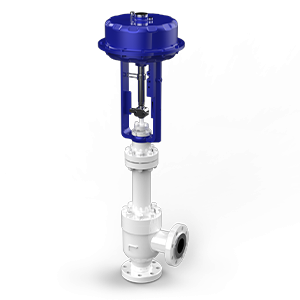

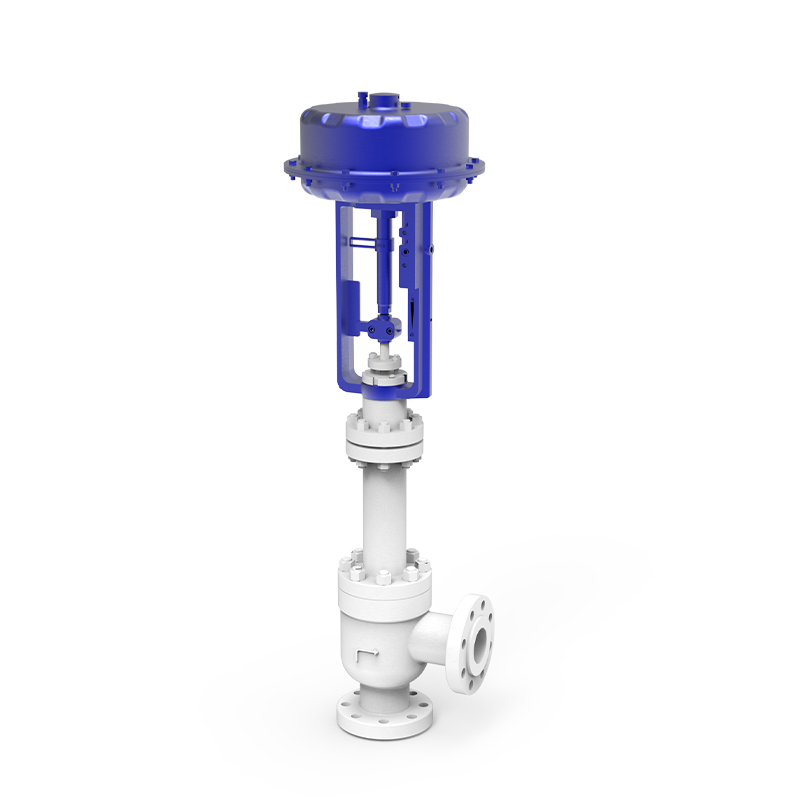

CAVHW701 High-pressure Bellows-sealed Single-seat Angle-type Control Valve
The CAVHW701 High-pressure Bellows-sealed Single-seat Angle-type Control Valve is a top-guided structure control valve. It can be selected as an angle valve according to the requirements of pipeline orientation layout. The valve body has low pressure drop loss, large flow capacity, and wide adjustable range. The valve core has a large guiding area and good vibration resistance performance.
Our company has developed a variety of series of Angle control valves. They feature a compact valve body structure, low pressure drop loss, large flow rate, unobstructed flow channel with low resistance within the adjustable range, and high accuracy of the flow curve. It is particularly suitable for regulating high-viscosity fluids containing suspended solids and granular materials, which can prevent coking, adhesion, clogging and other phenomena, and is convenient for self-cleaning and cleaning. The control valve is equipped with the RSMF type multi-spring pneumatic diaphragm actuator, which features a simple and firm structure, large output force and long service life.
● Right-angle flow channel design: The inlet and outlet are at a 90-degree right angle, and the medium flow direction changes direction within the valve.
● Anti-clogging design: Reduces particle deposition and is suitable for media containing suspended solids or with high viscosity.
● Precise flow control: Flow characteristics can be customized as linear or equal percentage to meet different process requirements.
● Large adjustable ratio up to 50:1, suitable for systems with large flow variation range.
Material: WCB、C5、CF8、CF8M、CF3、CF3M.....
Nominal Size: DN40~DN300
Pressure Rate: PN16、PN25、PN40、PN63、PN100、CL150、CL300、CL600
Temperature Range: Standard Temperature : -17℃~+230℃
High-temperature type: EI: +230℃ ~ +525℃
Low-temperature type: LE-I: -45℃ ~ -17℃
LE-II:-100℃~-45℃
LE-III:-196℃~-100℃
Operator: Pneumatic, Electric, Manual, etc
Application range: Suitable for automation industries such as petroleum, chemical engineering, power stations, etc., as well as for occasions with suspension and coking.
RAYS Side Entry Floating Ball Valves are designed manufactured to provide maximum service life and dependability. All ball valves are full ported and meet the design requirements of American Petroleum Institute Standard API 608&API 6D British standard BS 5351 and generally conform to American Society of Mechanical engineers standard ASME B16.34 valves are available in a complete range of body/bonnet materials and trims.
RAYS' Double Disc Gate Valve-Ethylene is manufactured using high-strength, high-temperature resistant materials, specifically designed for handling cracked gases in the petrochemical industry. This valve features exceptional sealing capabilities and low maintenance requirements, effectively handling high temperatures and corrosive media. Its unique slab gate design ensures smooth fluid flow without any obstruction, thereby reducing pressure loss and enhancing system efficiency. Additionally, the valve is equipped with an automatic self-cleaning feature that removes deposits during operation, ensuring reliability and stability over long-term use. Ideal for both new projects and upgrades of existing systems, the RAYS Double Disc Slab Gate Valve-Ethylene is a perfect choice for enhancing productivity and safety.
The Non-Rising Stem Gate Valve is also called the rotating stem gate valve. Stem and nut are arranged on the gate plate, handwheel rotation drive valve stem rotate to lift the gate, usually there is a trapezoidal thread at the bottom of the valve stem and the rotation movement is turned into a linear motion through the limit slot between the valve stem and the gate body and the gate body and the gate, that is, the operation torque is turned into operation thrust. When the valve is turned on, when the height of the gate is equal to the diameter of the valve 1: 1: 1, the channel of the fluid is completely unblocked, but at the run, this position cannot be monitored. In actual use, the vertex of the valve stem is used as a sign, that is, the position that is unmoved as its full opening position. The non-rising stem gate valve has the design characteristics of the ordinary wedge-type gate valve. The valve body has a guide mechanism, which can prevent the gate from rotating when the gate is turned on or closed, ensuring that the seal of the gate on the valve seat is accurate accordingly. At the same time, the wedge valve does not rub with the valve seat before turning off, thereby reducing the wear of the cover and effectively extending the service life of the valve.
