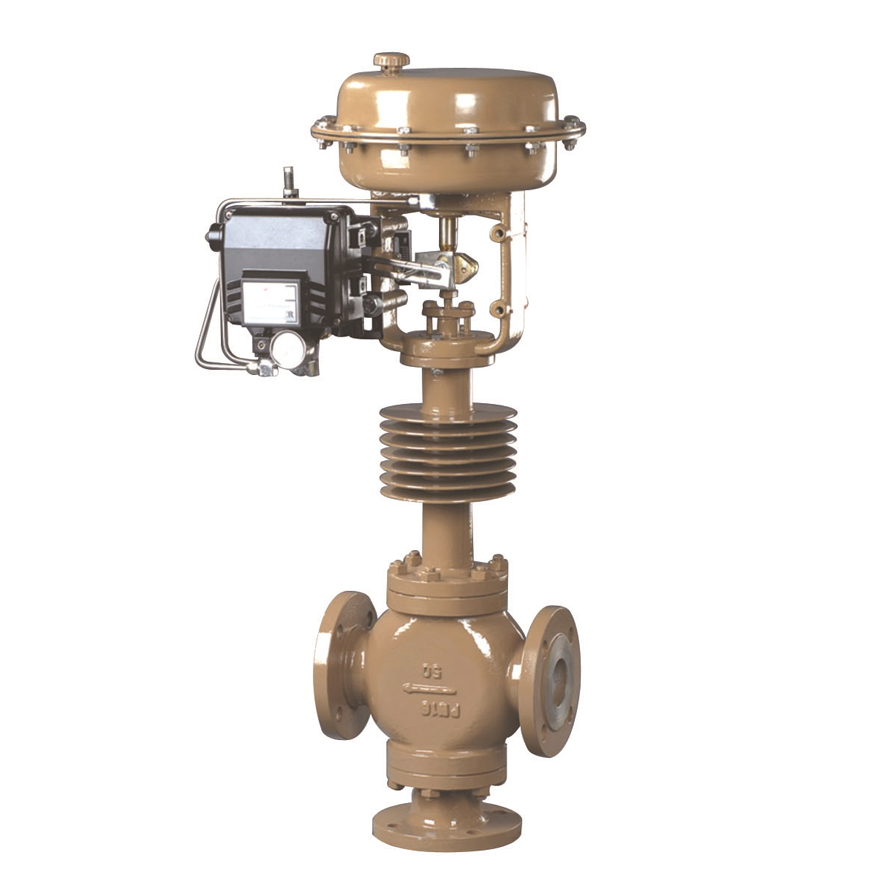

C730 Three-way Control Valve
The C730 Three-way Control Valve is mainly used to divide one incoming fluid into two outgoing fluids, or to combine two incoming fluids into one outgoing fluid. The three-way valve is divided into a combined flow regulating valve (C730-M) and a split flow regulating valve (C730-T). When the nominal diameter and pressure difference are small, the combined valve can be used in the split flow situation, but when the nominal diameter is larger than 80mm and the pressure difference is large, only the split valve can be used.
Special type control valves are customized valve products designed by our company for complex working conditions (such as high temperature, high pressure, strong corrosion, high precision, and low-temperature control, etc.). They possess the ability to precisely regulate flow and pressure, and can meet the stringent requirements in industrial processes.
● Cryogenic temperature regulating valve:
● Adopting elongated valve cover to prevent cold conduction and freezing of packing, thereby eliminating the adverse impact of ultra-low temperature on the sealing performance of the stuffing box;
● Main components undergo hardening treatment, ultra-low temperature treatment, and ultra-precision processing to ensure precise regulation of flow and pressure.
● Passed strict ultra-low temperature deep cryogenic tests to guarantee stable operation under extreme conditions, ensuring safety and reliability.
Material: CF8、CF8M、CF3、CF3M.....
Nominal Size: DN15~DN300
Pressure Rate: PN16、PN25、PN40、PN63、PN100、PN160、PN250、
CL150、CL300、CL600、CL900、CL1500
Temperature Range: -196~-100℃
Operator: Pneumatic, Electric, Manual, etc
Application range: Suitable for ultra-low temperature applications in natural gas, air separation equipment, liquid nitrogen, liquid oxygen, petroleum, chemical industry, etc
The Throttle Stop Valve is mainly composed of valve body, valve cover, valve flap, and valve stem. The handwheel applies a certain torque at the upper end of the valve stem. The valve stem is passed to the valve petals to move it up and down along the valve stem axis to realize the full-opening, full-closed movements and regulating traffic functions. The force applied by the hand wheel can be obsessed with the valve seat to reach the sealing state; Location, change the cross-sectional area between the valve petals and the cover of the valve seat, and achieve the purpose of regulating media flow. At the same time, the throttle stop valve does not rub with the valve seat before turning off, thereby reducing the wear of the cover and effectively extending the life of the valve.
CW700 Series Bellows Seal Control Valves are divided into three major series: CSW701/CW701/CW702/CLW702 type bellows-sealed single-seat regulating valves and bellows-sealed cage-type regulating valves, as well as low-leakage bellows-sealed cage-type regulating valves. The bellows-sealed single-seat regulating valve is a regulating valve with top guide structure. The bellows-sealed cage-type regulating valve is a regulating valve with pressure balance. The valve body has an S-flow channel type passage, with small pressure drop loss, large flow rate, wide adjustable range and high flow characteristic accuracy. The low-leakage bellows-sealed cage-type regulating valve not only has the advantages of cage-type regulating valves, but also has a sealing ring between the valve core and the valve cage, reducing the leakage. The full series of upper valve covers adopt bellows-sealed structure, which can completely eliminate the possibility of medium leakage from the valve stem movement gap to the outside. When equipped with the RSMF series actuators, it has a compact structure, large output force and long service life. Therefore, it is widely used in automatic control systems of highly toxic, strongly corrosive, radioactive and rare and precious media. *CSW701Bellows Seal small-Port single-seat control valve *CW701 Bellows Seal single-seat control valve *CW702 Bellows Seal caged globe control valve *CLW702 Bellows Seal Low-leakage bellows caged globe control valve
Designed specifically for deep-cold media such as LNG and liquid oxygen, this valve features an austenitic stainless steel body that undergoes special deep-cold treatment to ensure reliable sealing and operational performance under extreme conditions of -196℃. The valve stem adopts an extended neck design and is equipped with a vacuum insulation structure, effectively blocking the transmission of cold energy. The valve can be equipped with either a flat seal or a conical seal structure, allowing for selection based on different pressure ratings, and is suitable for precise flow control in liquefied natural gas storage and transportation, air separation equipment, and low-temperature chemical systems.
